Set up SAP CPQ in Configuration Studio

Use SAP CPQ in Configuration Studio to build configurator sections for products that must resolve to a single, valid, purchasable configuration. SAP provides the product model, configuration logic, and optional pricing data.

Before you start

Before setting up SAP CPQ, make sure you have:

SAP connection credentials
the SAP authentication URL
the Variant Configuration Service base URL
the knowledge base ID
the product ID
the API language for each locale you want to support
pricing service details, if you plan to use SAP pricing

Create an SAP Catalog

Open your configurator in Conversation Studio (or use the standalone Configuration Studio).
In the Catalog tab, create a new catalog for your configurator.

You will see two options:

SAP Catalog for SAP CPQ-based configuration
Catalog for a standard catalog data source

Select SAP Catalog to create a new SAP CPQ collection. This opens the Map product details form, where you define the SAP connection settings for the catalog.

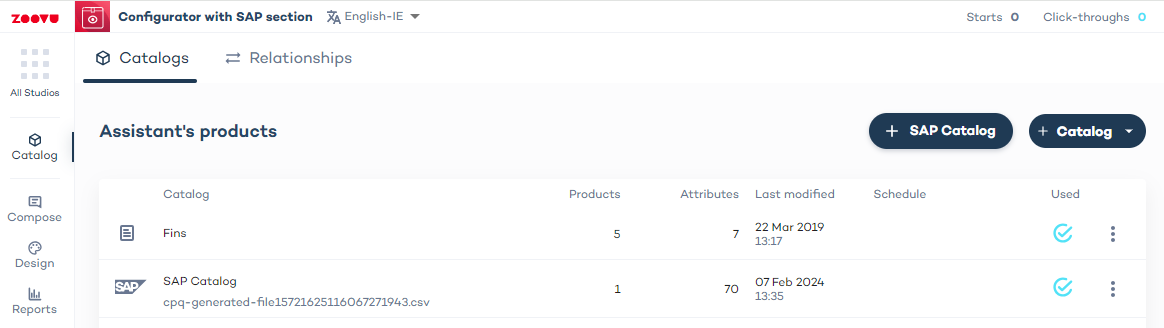

Catalog tab view

Connection settings

In Map product details, enter the settings required for authentication, product configuration, and optional pricing.

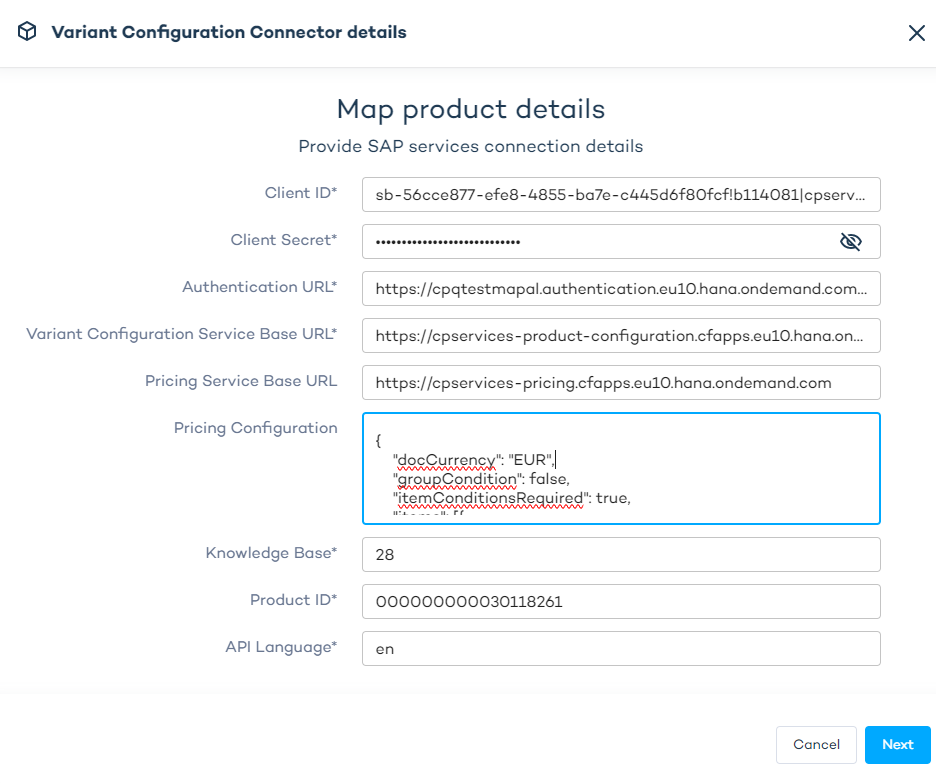

ROOT locale connection settings example

Required fields

These fields are required for product configuration:

Client ID → clientId
Client Secret → clientSecret
Authentication URL → authenticationUrl
Variant Configuration Service Base URL → baseUrl
Knowledge Base → knowledgeBase
Product ID → productId
API Language → apiLanguage

Optional pricing fields

Use these fields only if you want SAP to calculate pricing:

Pricing Service Base URL → psBaseUrl
Pricing Configuration → pricingConfiguration

JSON example

{
  "clientId": "sb-56cce877-efe8-4855-ba7e-c445d6f80fcf!b114081|cpservices-secured!b1725",
  "clientSecret": "GqKMEmXJ9UTFgZ5gOtkQZgS3uEQ=",
  "authenticationUrl": "https://ottobock-cps-dev.authentication.eu10.hana.ondemand.com/oauth/token",
  "baseUrl": "https://cpservices-product-configuration.cfapps.eu10.hana.ondemand.com",
  "psBaseUrl": "https://cpservices-pricing.cfapps.eu10.hana.ondemand.com",
  "pricingConfiguration": "{\"docCurrency\": \"GBP\",\"groupCondition\": false,\"itemConditionsRequired\": true,\"items\": [{\"accessDateList\": [{\"name\": \"KOMK-PRSDT\",\"value\": \"2024-05-01\"}, {\"name\": \"KOMK-FBUDA\",\"value\": \"2024-05-01\"}],\"itemId\": \"1\",\"attributes\": [{\"name\": \"KOMK-PLTYP\",\"values\": [\"Z1\"]}, {\"name\": \"KOMK-VKORG\",\"values\": [\"0001\"]}, {\"name\": \"KOMK-VTWEG\",\"values\": [\"01\"]}, {\"name\": \"KOMK-WAERK\",\"values\": [\"GBP\"]}, {\"name\": \"KOMP-PMATN\",\"values\": [\"$.productKey\"]}, {\"name\": \"KOMK-SPART\",\"values\": [\"01\"]}, {\"name\": \"KOMK-LAND1\",\"values\": [\"UK\"]}, {\"name\": \"KOMP-PRSFD\",\"values\": [\"X\"]}, {\"name\": \"KOMP-VARCOND\",\"values\": [\"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"]}, {\"name\": \"PRSFD\",\"values\": [\"X\"]}],\"quantity\": {\"unit\": \"PCE\",\"value\": 5},\"productDetails\": {\"productId\": \"$.productKey\",\"baseUnit\": \"PCE\",\"alternateProductUnits\": null},\"statistical\": false,\"variantConditions\": [{\"factor\": 1,\"key\": \"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"}]}],\"locCurrency\": \"GBP\", \"pricingProcedure\":\"ZVAR15\"}",
  "knowledgeBase": "28",
  "productId": "000000000030118261",
  "apiLanguage": "en"
}

Map product details form to JSON properties mapping:

Client ID → cliendId
Client Secret → clientSecret
Authentication URL → authenticationUrl
Variant Configuration Service Base URL → baseUrl - used for Product Configuration
Pricing Service Base URL → psBaseUrl - used for Product Pricing
Pricing Configuration → pricingConfiguration
Knowledge Base → knowledgeBase
Product ID → productId
API Language → apiLanguage

Pricing Service Base URL (psBaseUrl) and Pricing Configuration (pricingConfiguration) are optional properties, provided only when the pricing service will be used. They are visible only when the SAP_CPQ_PRICING feature flag is enabled. All other settings are required.

Pricing configuration example

Show example Pricing Configuration

{
    "docCurrency": "EUR",
    "groupCondition": false,
    "itemConditionsRequired": true,
    "items": [{
            "accessDateList": [{
                    "name": "KOMK-PRSDT",
                    "value": "2024-05-01"
                }, {
                    "name": "KOMK-FBUDA",
                    "value": "2024-05-01"
                }
            ],
            "itemId": "1",
            "attributes": [{
                    "name": "KOMK-PLTYP",
                    "values": ["Z1"]
                }, {
                    "name": "KOMK-VKORG",
                    "values": ["0001"]
                }, {
                    "name": "KOMK-VTWEG",
                    "values": ["01"]
                }, {
                    "name": "KOMK-WAERK",
                    "values": ["EUR"]
                }, {
                    "name": "KOMP-PMATN",
                    "values": ["$.productKey"]
                }, {
                    "name": "KOMK-SPART",
                    "values": ["01"]
                }, {
                    "name": "KOMK-LAND1",
                    "values": ["DE"]
                }, {
                    "name": "KOMP-PRSFD",
                    "values": ["X"]
                }, {
                    "name": "KOMP-VARCOND",
                    "values": ["$.rootItem.characteristics[?(@.id == \"VC057\")].values[0].value"]
                }, {
                    "name": "PRSFD",
                    "values": ["X"]
                }
            ],
            "quantity": {
                "unit": "PCE",
                "value": 5
            },
            "productDetails": {
                "productId": "$.productKey",
                "baseUnit": "PCE",
                "alternateProductUnits": null
            },
            "statistical": false,
            "variantConditions": [{
                    "factor": 1,
                    "key": "$.rootItem.characteristics[?(@.id == \"VC057\")].values[0].value"
                }
            ]
        }
    ],
    "locCurrency": "EUR",
    "pricingProcedure": "ZVAR15"
}

Catalog structure

An SAP Catalog should contain a single product with many configurable properties. Example:

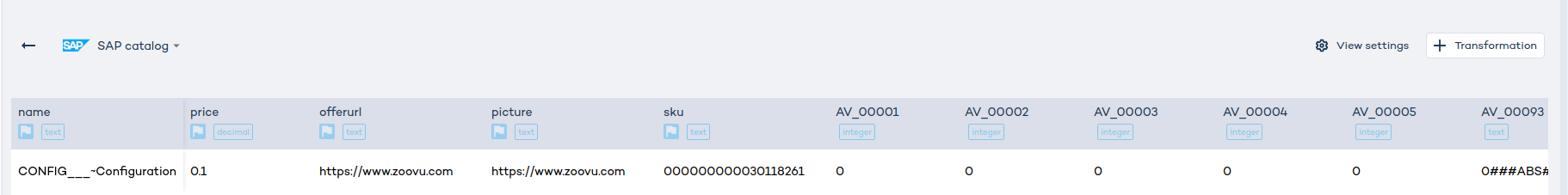

SAP Catalog content

This is different from a standard catalog used for recommendations, which typically contains multiple products.

Link an SAP catalog to a section

To use the SAP Catalog in a configurator:

Go to the Compose tab.
Open the configurator section.
Select the SAP Catalog you want to use for that section.
Once linked, the section uses SAP CPQ for product configuration.

Additional locales

Non-ROOT locales inherit their base SAP connection settings from the ROOT locale.

For each non-ROOT locale, apply connection settings again and provide:

apiLanguage
pricingConfiguration if you want locale-specific pricing configuration. If it's not provided, the ROOT locale's pricingConfiguration will be used.

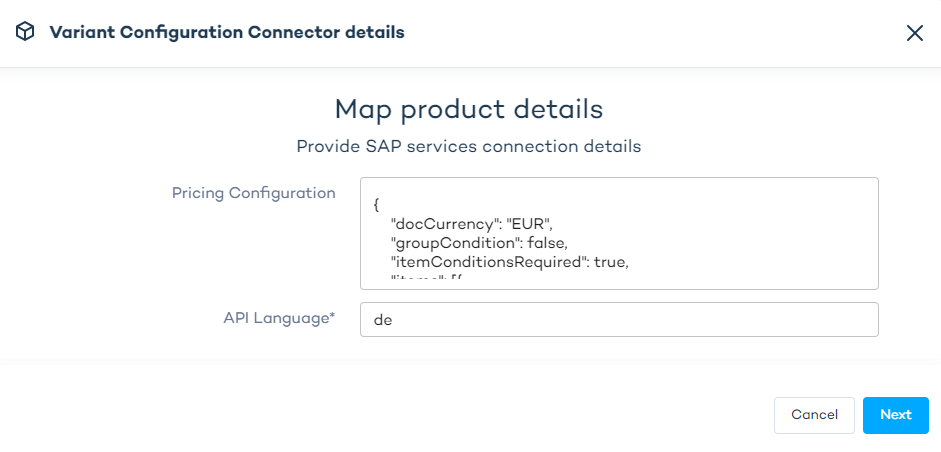

German locale connection settings example

{
    "clientId": "",
    "clientSecret": "",
    "authenticationUrl": "",
    "baseUrl": "",
    "psBaseUrl": "",
    "pricingConfiguration": "{\"docCurrency\": \"EUR\",\"groupCondition\": false,\"itemConditionsRequired\": true,\"items\": [{\"accessDateList\": [{\"name\": \"KOMK-PRSDT\",\"value\": \"2024-05-01\"}, {\"name\": \"KOMK-FBUDA\",\"value\": \"2024-05-01\"}],\"itemId\": \"1\",\"attributes\": [{\"name\": \"KOMK-PLTYP\",\"values\": [\"Z1\"]}, {\"name\": \"KOMK-VKORG\",\"values\": [\"0001\"]}, {\"name\": \"KOMK-VTWEG\",\"values\": [\"01\"]}, {\"name\": \"KOMK-WAERK\",\"values\": [\"EUR\"]}, {\"name\": \"KOMP-PMATN\",\"values\": [\"$.productKey\"]}, {\"name\": \"KOMK-SPART\",\"values\": [\"01\"]}, {\"name\": \"KOMK-LAND1\",\"values\": [\"DE\"]}, {\"name\": \"KOMP-PRSFD\",\"values\": [\"X\"]}, {\"name\": \"KOMP-VARCOND\",\"values\": [\"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"]}, {\"name\": \"PRSFD\",\"values\": [\"X\"]}],\"quantity\": {\"unit\": \"PCE\",\"value\": 5},\"productDetails\": {\"productId\": \"$.productKey\",\"baseUnit\": \"PCE\",\"alternateProductUnits\": null},\"statistical\": false,\"variantConditions\": [{\"factor\": 1,\"key\": \"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"}]}],\"locCurrency\": \"EUR\", \"pricingProcedure\":\"ZVAR15\"}",
    "knowledgeBase": "",
    "productId": "",
    "apiLanguage": "de"
}

The result settings for de-DE locale will be:

{
  "clientId": "sb-56cce877-efe8-4855-ba7e-c445d6f80fcf!b114081|cpservices-secured!b1725",
  "clientSecret": "GqKMEmXJ9UTFgZ5gOtkQZgS3uEQ=",
  "authenticationURL": "https://cpqtestmapal.authentication.eu10.hana.ondemand.com/oauth/token",
  "baseURL": "https://cpservices-product-configuration.cfapps.eu10.hana.ondemand.com",
  "psBaseUrl": "https://cpservices-pricing.cfapps.eu10.hana.ondemand.com",
  "pricingConfiguration": "{\"docCurrency\": \"EUR\",\"groupCondition\": false,\"itemConditionsRequired\": true,\"items\": [{\"accessDateList\": [{\"name\": \"KOMK-PRSDT\",\"value\": \"2024-05-01\"}, {\"name\": \"KOMK-FBUDA\",\"value\": \"2024-05-01\"}],\"itemId\": \"1\",\"attributes\": [{\"name\": \"KOMK-PLTYP\",\"values\": [\"Z1\"]}, {\"name\": \"KOMK-VKORG\",\"values\": [\"0001\"]}, {\"name\": \"KOMK-VTWEG\",\"values\": [\"01\"]}, {\"name\": \"KOMK-WAERK\",\"values\": [\"EUR\"]}, {\"name\": \"KOMP-PMATN\",\"values\": [\"$.productKey\"]}, {\"name\": \"KOMK-SPART\",\"values\": [\"01\"]}, {\"name\": \"KOMK-LAND1\",\"values\": [\"DE\"]}, {\"name\": \"KOMP-PRSFD\",\"values\": [\"X\"]}, {\"name\": \"KOMP-VARCOND\",\"values\": [\"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"]}, {\"name\": \"PRSFD\",\"values\": [\"X\"]}],\"quantity\": {\"unit\": \"PCE\",\"value\": 5},\"productDetails\": {\"productId\": \"$.productKey\",\"baseUnit\": \"PCE\",\"alternateProductUnits\": null},\"statistical\": false,\"variantConditions\": [{\"factor\": 1,\"key\": \"$.rootItem.characteristics[?(@.id == \\\"VC057\\\")].values[0].value\"}]}],\"locCurrency\": \"EUR\", \"pricingProcedure\":\"ZVAR15\"}",
  "knowledgeBase": "28",
  "productId": "000000000030118261",
  "apiLanguage": "de"
}

Add custom summary price logic

If you need custom price calculation in the summary:

Go to the Compose tab.
Open Selection summary.
Open Configuration Price Logic.
Enable Use custom price logic.
Paste your script and save.

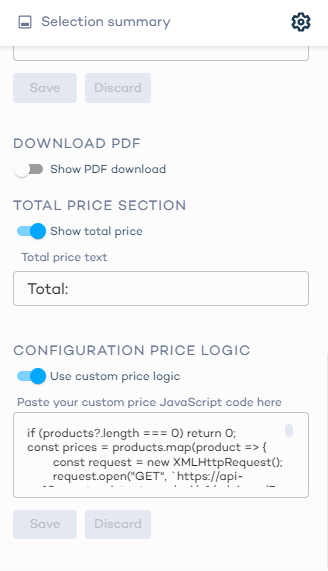

Custom configuration price logic setup

Example script

if (products?.length === 0) return 0;

const prices = products
    .filter((x) => x.metaData.sapCpq.isComplete)
    .map((product) => {
        const request = new XMLHttpRequest();
        request.open("POST", `https://qa3-api.dev.zoovu.io/advisor-fe-web/api/v1/advisors/JgJFRzFR/configurator/vcps/price-calculation?locale=en-IE&sectionId=${product.sectionId}&configurationId=${product.metaData.sapCpq.configurationId}`, true);
        request.setRequestHeader('Content-type', 'application/json');

        const runtimeParams = [
            {"op": "replace", "path": "/items/0/quantity", "value": {value: 3,unit: "EA"}},
            {"op": "replace", "path": "/docCurrency", "value": "EUR"},
            {"op": "replace", "path": "/items/0/accessDateList", "value": [{name: "KOMK-PRSDT",value: "2024-11-29"},{name: "KOMK-FBUDA",value: "2024-11-29"}]},
        ];

        request.send(JSON.stringify(runtimeParams));
        if (request.status === 200) {
            return Number(JSON.parse(request.responseText)?.grossValue);
        } else {
            console.error(`Failed to fetch price for product ${product.sectionId}`);
            return null;
        }
    });

const totalPrice = prices.reduce((a, b) => a + (b || 0), 0);
return totalPrice;

The value JgJFRzFR used in the example endpoint is the advisor code of the published configurator.

This is a simple example script intended for testing.

Runtime behavior

Product configuration

An SAP configurator is used to configure a single product. A configuration is complete when the user has provided all selections required to define that product.

To verify the result:

Open the configurator and complete all required selections.
Check the last /products endpoint response.
In the response payload, go to:

sectionProducts -> 0 -> productInstance -> metaData -> sapCpq

This object contains:

configurationId — the unique SAP configuration ID
isComplete — whether all required data has been provided
isValid — whether the configuration is valid according to SAP rules

A usable configuration must be both complete and valid.

Example /products call

Example configuration ID: 13ah57fa-lkjh-44c9-abc1-be91e9d1601e

A configuration ID can expire over time and may need to be recalculated.

Once you have the configuration ID, you can retrieve the full SAP configuration by calling:

GET api/v2/configurations/{configurationId}

Price calculation

Price calculation runs when a configured product is added to the summary. After the user completes the required selections, the calculated price should appear in the summary.

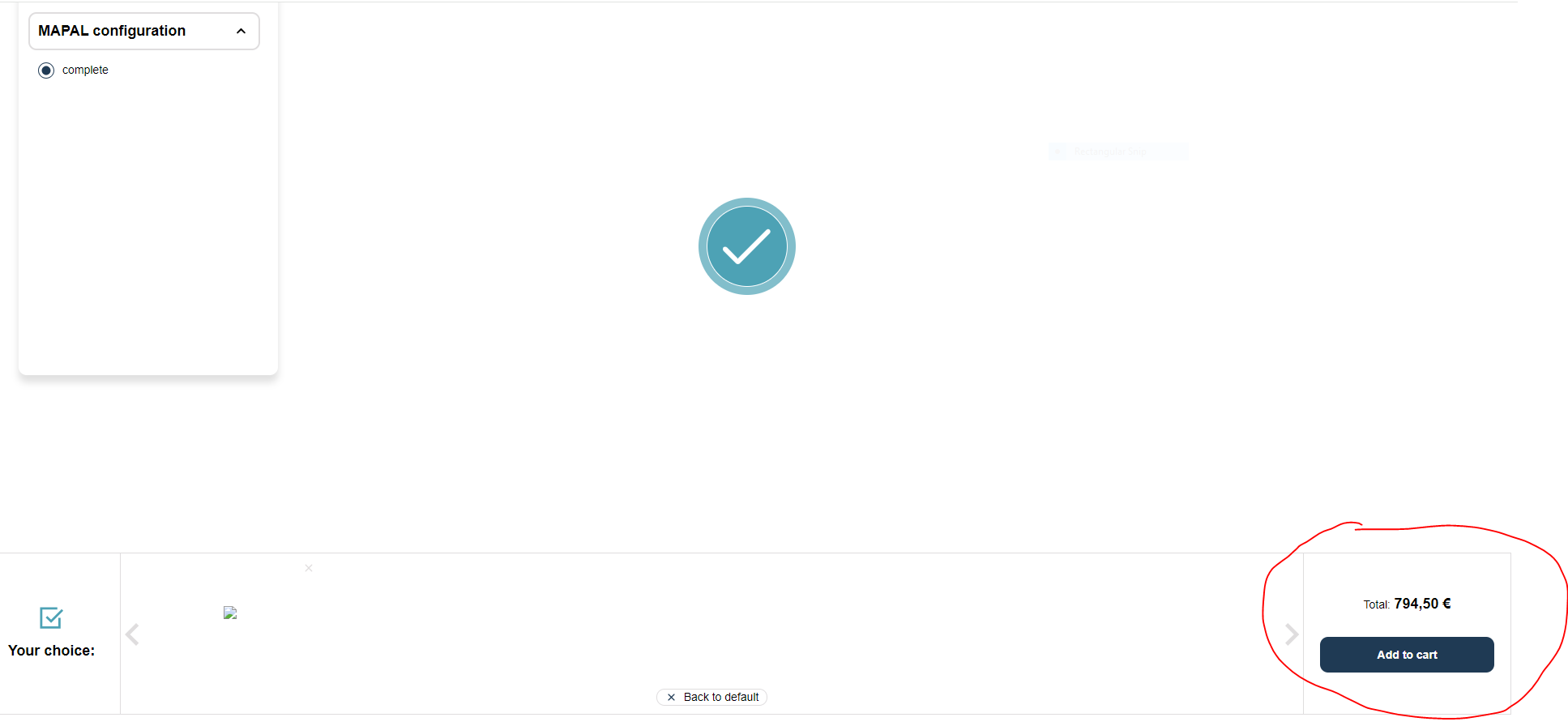

Summary with price
